[ASA IPSec] ASA 와 Cisco IOS의 IPsec IKEv1 Tunnel 연결

1. 본사와 지점간 특정 PC만 IPsec IKEv1 VPN 통해 본사의 WEB, WAS 서버에 연결 요청

- 본사 : ASA5516X

- 지점 : C1905 (security License 필요)

- 지점 네트워크는 192.168.2.0/24 이고 192.168.2.0 255.255.255.240 대역만 본사 접속 가능

- ASA Mgmt0/0은 192.168.80.11로 ASDM 연결

구성도를 이해하자



2. 본사 ASA와 WEB / WAS IP설정

# WAS interface Vlan1  ip address 192.168.136.2 255.255.255.0 ! ip route 0.0.0.0 0.0.0.0 192.168.136.1 # WEB interface Vlan1  ip address 192.168.36.2 255.255.255.0 ! ip route 0.0.0.0 0.0.0.0 192.168.36.1

# HQ_ASA (Basic) interface GigabitEthernet0/0  nameif outside  security-level 0  ip address 100.100.100.1 255.255.255.0   no shut ! interface GigabitEthernet0/1  description ### WAS SERVER ###  nameif inside  security-level 100  ip address 192.168.136.1 255.255.255.0   no shut ! interface GigabitEthernet0/2  description ### WEB SERVER ###  nameif dmz  security-level 100  ip address 192.168.36.1 255.255.255.0  no shut ! interface Management0/0  management-only  nameif management  security-level 100  ip address 192.168.80.11 255.255.255.0  ! route outside 0.0.0.0 0.0.0.0 100.100.100.3 ! object network WEB  subnet 192.168.36.0 255.255.255.0 ! object network WAS  subnet 192.168.136.0 255.255.255.0 ! object-group network BRANCH  network-object object WAS  network-object object WEB ! object network STAFF_LAN  subnet 192.168.2.0 255.255.255.0 ! http 192.168.80.0 255.255.255.0 management ! username admin password cisco ! policy-map global_policy  class inspection_default   inspect icmp ! end

# HQ_ASA (IPSec) - CLI 사용할 경우 crypto ikev1 enable outside crypto ikev1 policy 1  authentication pre-share  encryption aes  hash sha  group 5  lifetime 86400 ! tunnel-group 100.100.100.3 type ipsec-l2l tunnel-group 100.100.100.3 general-attributes  default-group-policy GroupPolicy_100.100.100.3 tunnel-group 100.100.100.3 ipsec-attributes  ikev1 pre-shared-key CISCO123 ! access-list outside_cryptomap extended permit ip object-group BRANCH object STAFF_LAN  ! nat (any,outside) source static BRANCH BRANCH destination static STAFF_LAN  STAFF_LAN  no-proxy-arp route-lookup ! crypto ipsec ikev1 transform-set ESP-AES-128-SHA esp-aes esp-sha-hmac  ! crypto map outside_map 1 match address outside_cryptomap crypto map outside_map 1 set peer 100.100.100.3  crypto map outside_map 1 set ikev1 transform-set ESP-AES-128-SHA crypto map outside_map interface outside

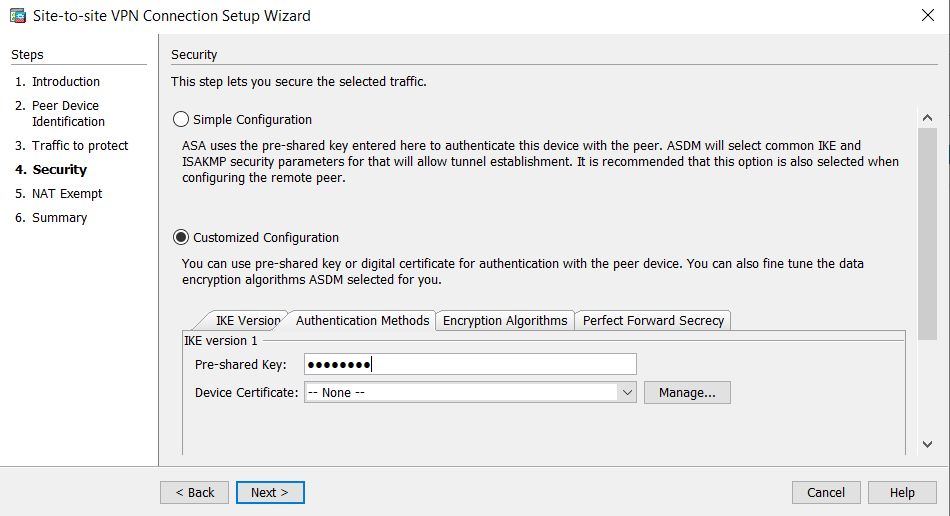

# HQ_ASA (IPSec) - ASDM 사용할 경우 - Pre-shared Key는 위에 설정한 CISCO123 -

- 검증

3. 지점 라우터의 사용자 NAT 및 DHCP 설정

# Branch_R1 ip dhcp excluded-address 192.168.2.1 192.168.2.15  #특정 사용자는 DHCP 대역 열외 ! ip dhcp pool LAN  network 192.168.2.0 255.255.255.0  default-router 192.168.2.1   dns-server 8.8.8.8   lease 0 8 ! interface GigabitEthernet0/0  ip address 100.100.100.3 255.255.255.0  ip nat outside ! interface GigabitEthernet0/1  ip address 192.168.2.1 255.255.255.0  ip nat inside ! ip nat inside source list NAT-POOL interface GigabitEthernet0/0 overload ip route 0.0.0.0 0.0.0.0 100.100.100.1 ! ip access-list extended NAT-POOL  permit ip 192.168.2.0 0.0.0.255 any

# Branch_SW interface Vlan1  ip address 192.168.2.2 255.255.255.0 ! ip route 0.0.0.0 0.0.0.0 192.168.2.1

- 검증

# DHCP_PC

4. 지점 라우터의 VPN 설정 (반복 설정하며 내용 숙지)

# Branch_R1 (VPN 설정) crypto isakmp policy 1  encr aes  authentication pre-share  group 5 crypto isakmp key CISCO123 address 100.100.100.1   ! crypto ipsec transform-set ESP-AES-128-SHA esp-aes esp-sha-hmac   mode tunnel ! crypto map outside_map 1 ipsec-isakmp   set peer 100.100.100.1  set transform-set ESP-AES-128-SHA   match address VPN-POOL ! ip access-list extended NAT-POOL                               # 인터넷 일반 사용자를 위한 NAT POOL  9 deny   ip 192.168.2.0 0.0.0.15 192.168.36.0 0.0.0.255   # WEB 접속을 위한 VPN 사용자는 NAT 필요없음  9 deny   ip 192.168.2.0 0.0.0.15 192.168.136.0 0.0.0.255 # WAS 접속을 위한 VPN 사용자는 NAT 필요없음 ! ip access-list extended VPN-POOL                               #특정사용자를 위한 VPN POOL   permit ip 192.168.2.0 0.0.0.15 192.168.36.0 0.0.0.255     # WEB 접속을 위한 VPN 사용자 IP  permit ip 192.168.2.0 0.0.0.15 192.168.136.0 0.0.0.255   # WAS 접속을 위한 VPN 사용자 IP !

- 검증 1

# VPN_PC에서 static IP를 설정후 ping 통신 확인   # Branch_R1에서 VPN 연결 확인

- 검증 2

# STAFF_PC에서 DHCP로 IP를 받은 후 ping 통신 확인

- 검증 3

# ASA에서 IPSec 모니터링 탭 확인하여 트래픽 확인

============================================================================

# TIP : Branch_R1 전체 설정 첨부
