[EVE-NG] ASA - inside to outside

0. 네트워크 구성도 확인

1. ASA 설정

---

- asdm 설치 및 설정

!
interface Management0/0
 nameif management
 security-level 0
 ip address 192.168.80.10 255.255.255.0

 no shut

!

username admin password cisco

logging enable

!

http server enable
http 192.168.80.0 255.255.255.0 management

!



- IP 및 라우팅 설정

!
interface GigabitEthernet0/0
 nameif outside
 security-level 0
 ip address 100.100.100.1 255.255.255.0

 no shutdown
!
interface GigabitEthernet0/1
 nameif inside
 security-level 100
 ip address 192.168.136.1 255.255.255.0

 no shutdown
!

route outside 0.0.0.0 0.0.0.0 100.100.100.2

!



- OBJECT and NAT 생성

!

object network LAN
 subnet 192.168.136.0 255.255.255.0

 nat (inside,outside) dynamic interface

!



- 기타설정

!

policy-map global_policy
 class inspection_default
  inspect icmp

---

2. ASDM 설정

- Tools > Preferences에서 "Preview commands before sending them..." 체크하면 설정시 CLI 확인 가능

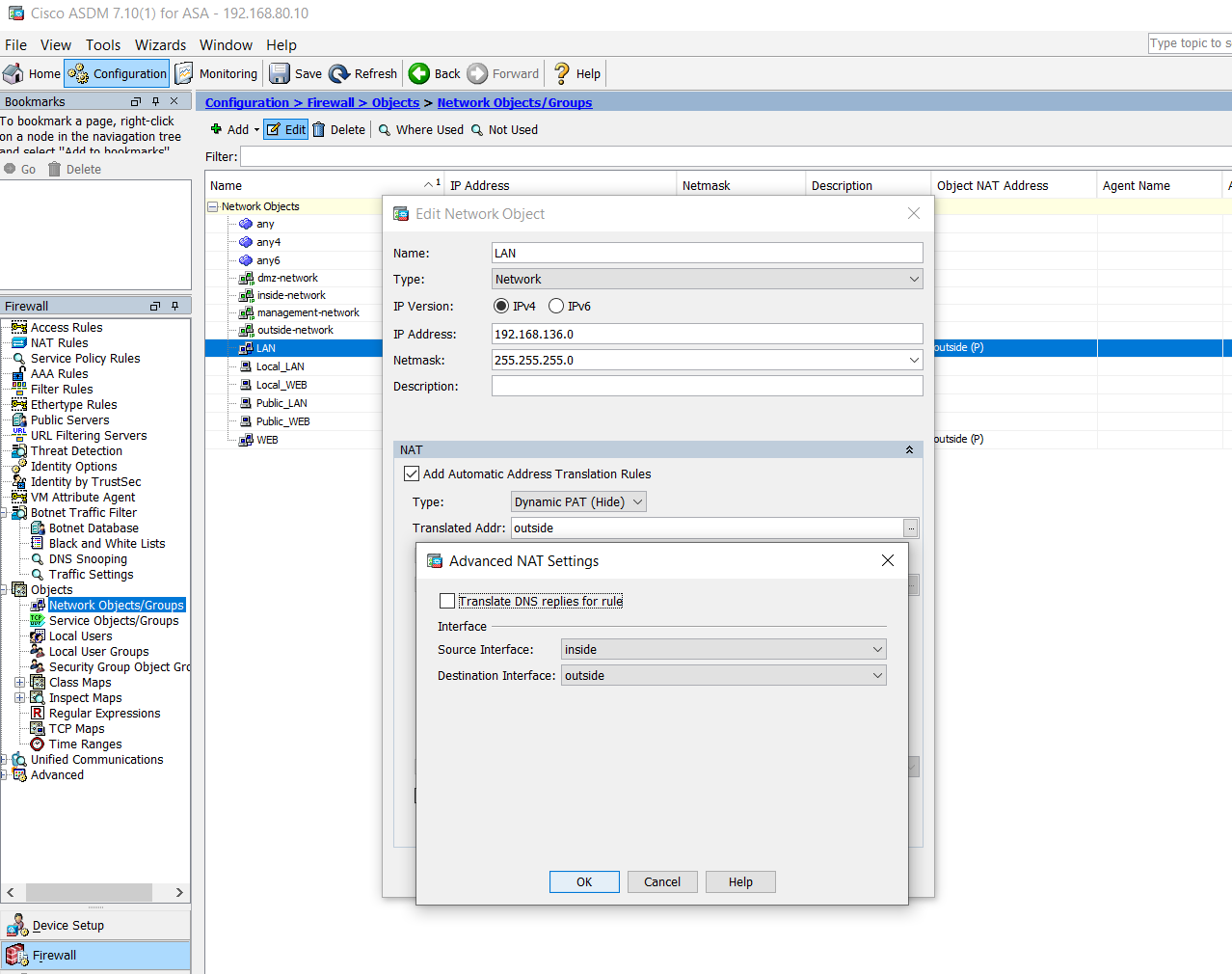

- Configuration > Firewall > Objects > Network Objects/Groups > +Add

- Configuration > Firewall > NAT Rules 에서 확인

---

3. LAN SW (insdie)에서 ISP (outside)로 ping 확인

---

---

✔ TIP

---

- ISP 설정



!
interface GigabitEthernet0/0
 ip address 192.168.80.100 255.255.255.0
 no shut
!
interface GigabitEthernet0/1
 ip address 100.100.100.2 255.255.255.0
 no shut
!

ip route 0.0.0.0 0.0.0.0 192.168.80.2 // 외부 통신을 위해 eve-ng 라우팅 추가

!

---

ISP 라우터에서 외부 통신 확인

---

EVE-NG에서 gateway 확인

---

- LAN 설정



!
interface Vlan1
 ip address 192.168.136.100 255.255.255.0

 no shut

!

ip route 0.0.0.0 0.0.0.0 192.168.136.1
!

---
